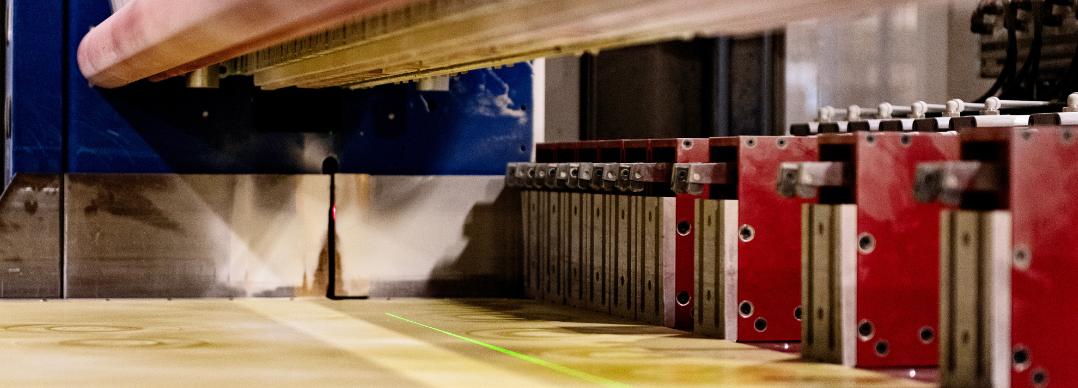

G10 for chemical industry. G11 for chemists. Phenolic in chemical industry
Quality Testing Mechanical Properties



NEMA (National Electrical Manufacturers Association) Testing procedures involve a range of assessments, including mechanical strength tests, dielectric strength evaluations, flame resistance checks, and thermal stability analyses.

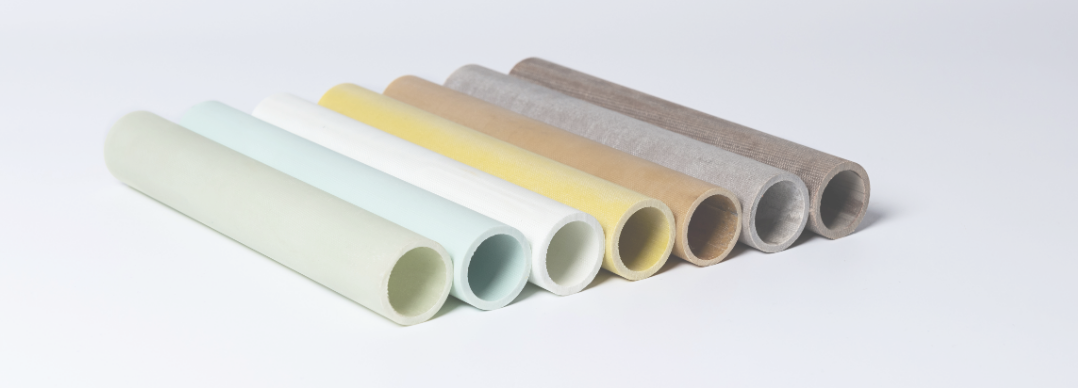

Industrial laminates in Labatory settings.
Mechanical Properties
Mechanical testing for NEMA standards evaluates how materials and electrical components behave under stress, strain, and impact. While NEMA establishes performance guidelines, testing for properties like tensile strength, flexural strength, and hardness relies on universally accepted methods



Flexural Strength: Flexural strength testing measures a material's ability to withstand bending forces without failure. By applying a controlled load to a test specimen, this evaluation provides insight into both the strength and stiffness of a material under real-world loading conditions.

  • Equipment: Universal Testing Machine

Tensile Strength: Tensile strength testing determines the maximum amount of pulling force a material can withstand before breaking. This test provides valuable information about a material's ability to resist stretching forces and perform reliably in structural applications.

  • Equipment: Universal Testing Machine

Compressive Strength: Compressive strength testing measures a material's resistance to crushing forces. By applying pressure until deformation or failure occurs, this test helps determine how well a composite material performs in load-bearing applications.

  • Equipment: Universal Testing Machine

Bond Strength: Bond strength testing evaluates the effectiveness of an adhesive or bonded joint by measuring the force required to separate bonded materials. This testing helps verify the reliability and durability of adhesive systems in demanding environments.

  • Equipment: Universal Testing Machine

Izod Impact: Izod impact testing measures a material's ability to absorb sudden impact energy without fracturing. The results provide an indication of toughness and help predict how materials will perform when subjected to shock or accidental impacts.

  • Equipment : Izod impact tester

Rockwell Hardness: Rockwell hardness testing is a widely recognized method used to determine a material's resistance to indentation and permanent deformation. This test provides a quick and reliable indication of material hardness and consistency.

  • Equipment: Rockwell hardness tester

Barcol hardness: Barcol hardness testing is commonly used to evaluate the surface hardness of reinforced composites, rigid plastics, and certain non-ferrous metals. The test provides a fast assessment of material hardness and can also be used to verify cure quality in composite structures.

  • Equipment: Barcol hardness tester
